West Marine Inflatable Dinghy and Mercury 9.9HP engine - $2,000 (Riverside)
condition:
excellent
make / manufacturer:
West Marine RIB-310
model name / number:
Hypalon Fiberglass Hull
QR Code Link to This Post

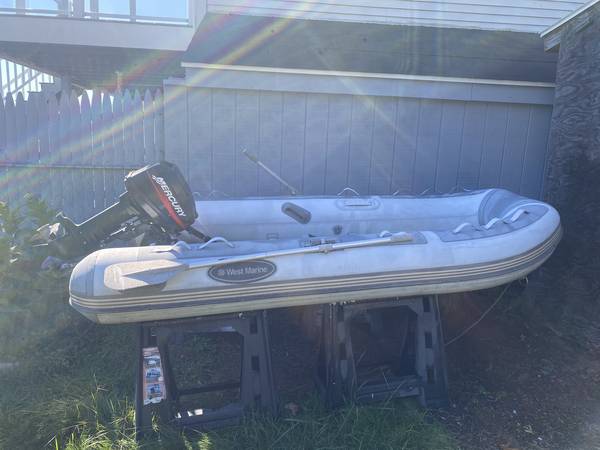

Used West Marine RIB-310 HYP Specs
Second owner, lightly used
Minor cosmetic damage, has been patched once. Holds air well.
Length (overall): 10′ 2″ (10.17 ft)
Beam: 5′ 2″ (62 in)
Tube diameter: 16 in
Number of chambers: 3
Floor: Fiberglass (single-floor construction)
Hull / bottom shape: V-shape fiberglass hull
Transom construction: Fiberglass + birch marine plywood (reinforced)
Maximum horsepower: 15 hp
Current horsepower: 9.9
Capacity (payload / persons): 1,144 lbs / approx. 3 persons
Weight (dry): 113 lbs
Stowed / packed dimensions: 9′ 3″ × 3′ 9″ × 1′ 7″
Tube material: Pennel Orca 215 Hypalon
Includes: pump, oars, repair kit
Lifting points: 3 (for davits)

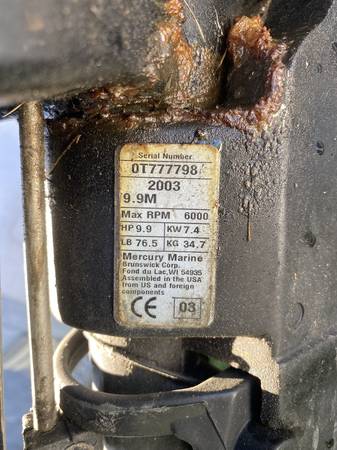

Engine Specs:
Mercury 9.9 HP Outboard Engine
Good Condition
Minor cosmetic damage
Locking mechanism needs slight adjustment
Inline 2 Cylinder
2-Stroke
Model: 9.9M (manual-start, tiller, short-shaft 15″)
Year built: 2003
Rated power: 9.9 hp (7.4 kW)
WOT RPM: up to 6000 rpm (typical operating band ~5000–6000)
Engine type: Inline-2, 2-stroke (common for 9.9M in this era)
Displacement: ≈169 cc (10.3 cu in)
Induction: Carbureted, loop-charged
Ignition: CDI electronic
Gear ratio: ≈2.08:1
Steering: Tiller
Shaft length: 15″ (short)
Dry weight (approx.): ~26 kg (~57 lb)
Cooling: Water-cooled, impeller/thermostat
Fuel/oil: Gasoline + TC-W3 outboard oil at 50:1
Recommended fuel: 87 AKI (R+M/2)
Propeller: 3-blade; common pitches ~8–10″ (select to reach 5000–6000 rpm at WOT)
Charging: None on base manual-start (add-on alternator kit optional on some units)
