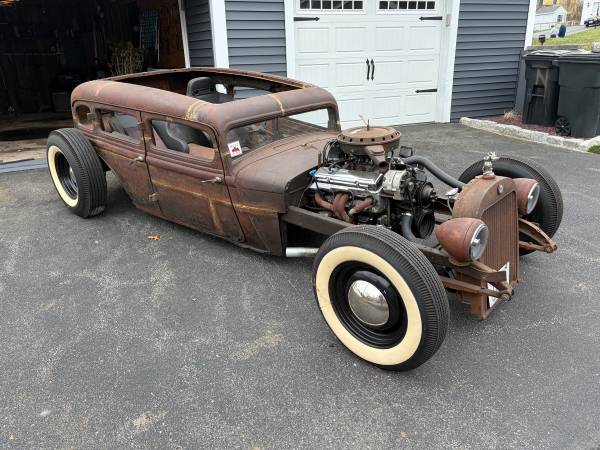

1933 Dodge DO Eight RATOD - $25,000 (Cumberland)
1933
Dodge sedan
QR Code Link to This Post
• VIN: 3599340
• Title 12w301228
Description:
• Clean Title
• Frame: Front Half: Late 40's Chevy Pickup
• Front End: Back Hair: Z d with 2"x4"x3/16 Wal Square Tubing
• 1952 GMC Pickup Straight Axle o 1952 GMC Rear Leaf Springs
• Rear End: Ford 9" (with new Posi unit)
• Brakes: Front: Wilwood DiscRear: Rear: GM Metric Disc Brakes
• Motor: NEW Gm Blueprint 383 stroker with 450 Hp
3 Row Aluminum Radiator with Electric Fan
• Transmission: TH350
• Body:
• Chopped 4"
• Channeled 4.5"
• Gold Brazened
• Floor: 1"x1" Square Tube with Bent Sheet Metal
• Electrical:
• Hid Headlights
• LED's Tail Lights and Turn Signals
• Fuel System:
• 13 gallon Fuel Cell
• High Flow Fuel Pump
• Tires: New Wide White Walls
• Additional Features:
• Steering Linkage & Steering Wheel Quick Disconnect
Gear Box was offset by a custom made chain drive
• Chain Steering Wheel
• Street Ready
Featured in Issue 15 Rat Rod Magazina with Courtney Hansen on the cover.
Special Notes and Operating Instructions:
• Switches:
• Gauge Box:
• Flip Switch:
• Up: Electric Fan On
• Down: Electric Fan Off
Push Button: Push to Start with Electric Fan On
Front Left: Gauges & Perimeter Gauge Lights (Up = On)
Front Right: Headlights/ Running Lights (Up = On)
Back: Turn Signals (Left - Off - Right)
Hump: Main Power On/Off
Starting:
Main Power On
Electric Fan On
Pump Gas a couple times
Push Start Button
Motor ID:
• Markings:
• Casting Number: 3970044: NA Might be 3970014:
• VIN Code: 16J305036:
•
Transmission ID:
• Markings:
• Pan Shape: THM350, 3 spd, 1969-89
• Driver Side:
• 8641319
• CFD2 12 (upside down)
