Gas Regulator with flowmeter regulator - $400 (Lincoln)
condition:
like new
QR Code Link to This Post

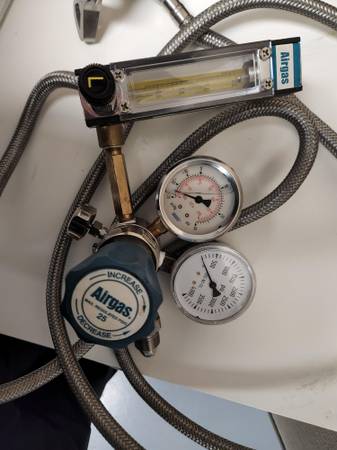

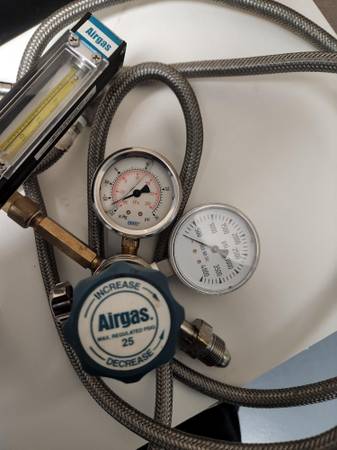

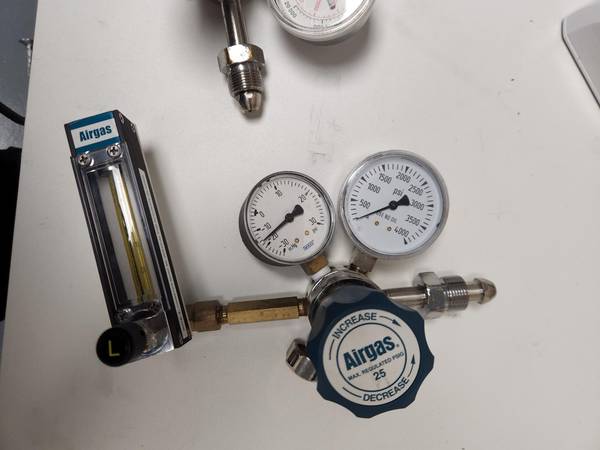

Airgas® Model FM244A580 Brass High Purity Single Stage Flowmeter Regulator With CGA Connection
Specs:
This Airgas® FM244 series of high-purity, single-stage flowmeter regulators are recommended for non-corrosive analytical and process applications. This regulator is part of our analytical series, machined from brass bar stock which affords minimum internal volume and eliminates large cavities and pockets associated with forged-body regulators. The flowmeter has a 65mm direct reading scale (based on air) etched into the tube. Accuracy is +5% full scale with +.25% repeatability. You must specify flow rate and gas service at time of ordering.
Features
Filtered Seat: For added gas stream purity and extended service life.
Convoluted Stainless Steel Diaphragms: Eliminates outgassing associated with elastomeric diaphragms.
Bar Stock Body: Affords low internal volume.
Encapsulated Filter Seat Assembly: Protects valve seat, extends service life.
Nickel-Plated Brass Body: Provides enhanced overall aesthetics, will not tarnish.
Superior Leak Integrity: Provides superior leak integrity without contamination from non-metallic liner or seal.
Direct Reading Scale: Allows the operator to read the flow directly on the tube.
Safety Relief Valve: Protects flowmeter and any equipment down stream.
Specifications
Maximum Inlet Pressure: 3,500 psig
Inlet Gauge Range: 0 - 4,000 psig
Outlet Pressure Range: 0 - 25 psig
Relief Valve Setting: 85 psig
Delivery Gauge Range: 0 - 30" Hg-0-30
Flow Ranges: 0.28,2.2,6, 20 and 150 scfh of Air
Ports: (4) 1/4" FNPT Regulator - 1/8" FNPT Flowmeter
Designed Leak Rate: Bubble-Tight (helium)
Ambient Operating Temperature: -40° F to +165° F
Weight: 3 lbs
Decay Inlet Characteristic: 0.35/100 psi
Product Attributes
Model FM244A580
Usage
» High Purity
Material
» Brass
Regulator Type
» Single Stage Regulator
» Flowmeter Regulator
Inlet Connection
» CGA
Outlet Connection
» 1/4" MNPT Instrument Valve
Max Outlet Pressure
» 25 psig
Gauge Diameter
» 2 1/2"
these got for 927 plus tax and shipping on the website.
Looking for 400 each obo.
Willing to discuss if you want all 3.
P/u in Lincoln/providence area or
can deliver for extra charge.
