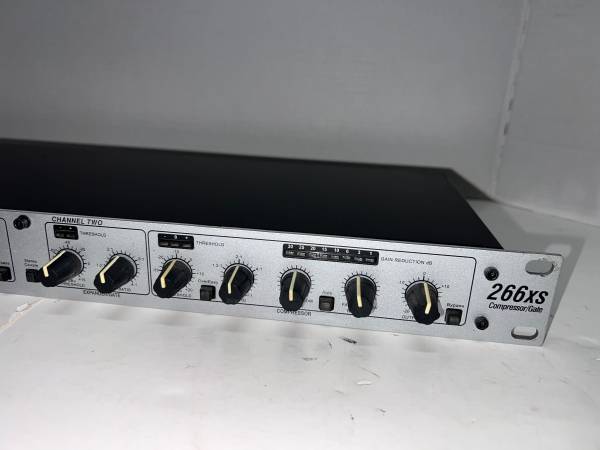

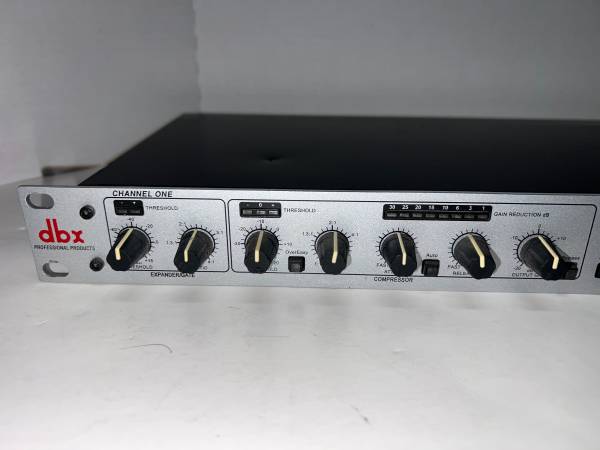

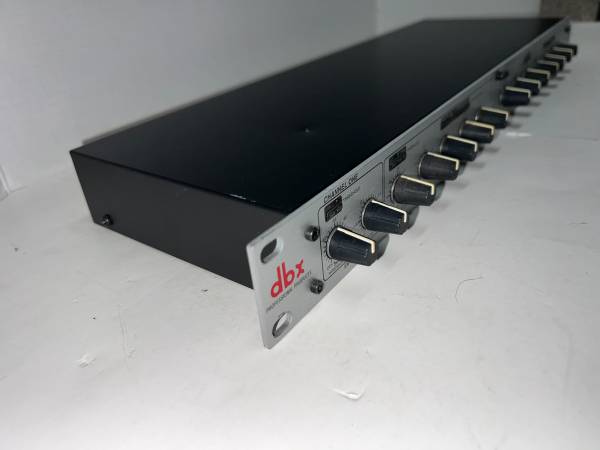

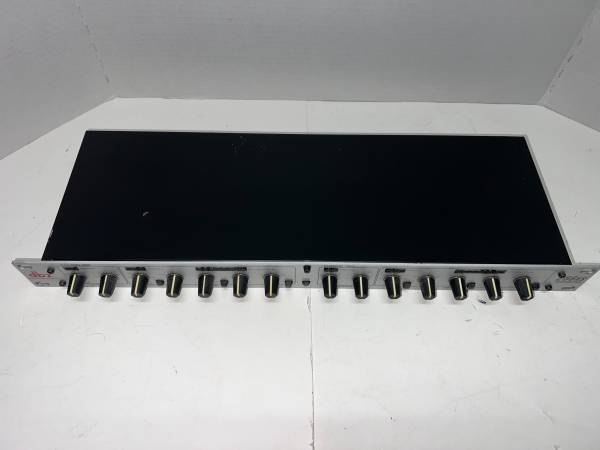

DBX 226XSV Compressor/Gate - $59 (Cranston)
QR Code Link to This Post

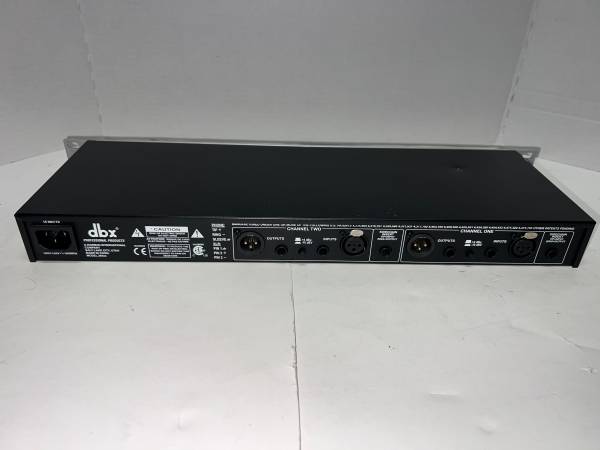

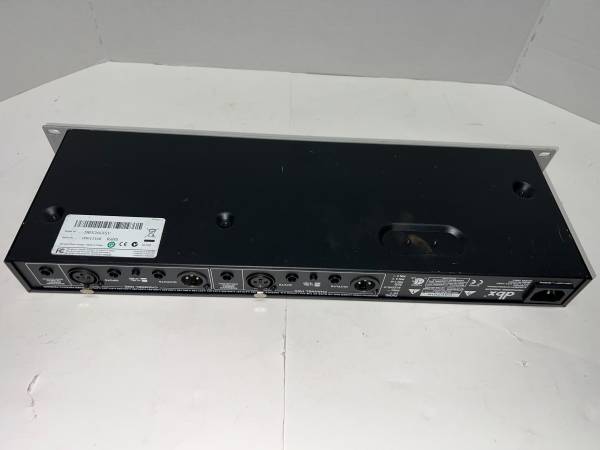

General specifications Type: VCA (Voltage Controlled Amplifier) Compressor.Channels: 2.Operation: Stereo or dual-mono modes.Dynamic range: \(>114\text{\ dB}\) (unweighted).Frequency response: \(20\text{\ Hz}20\text{\ kHz}\), +0/-0.5 dB.Crosstalk: \(<-95\text{\ dB}\) (20 Hz–20 kHz).Power consumption: 15 watts maximum.Dimensions: 1.75" H x 19" W x 5.75" D. Compressor specifications Threshold range: \(-40\text{\ dBu}\) to \(+20\text{\ dBu}\).Ratio: \(1:1\) to \(\infty :1\).Knee: Selectable OverEasy® or hard knee.Attack time: Program-dependent AutoDynamic™.Release time: Program-dependent AutoDynamic™. Expander/Gate specifications Threshold range: \(-60\text{\ dBu}\) to \(+15\text{\ dBu}\).Ratio: \(1:1\) to \(4:1\).Attack time: \(<100\text{\ \mu s}\).Release time: Program-dependent. Inputs and outputs The dbx 266xsv features 1/4" TRS and female XLR input connectors, and 1/4" TRS and male XLR output connectors. It also includes a 1/4" TRS sidechain phone connector. The inputs are electronically balanced/unbalanced with RF filtering. The input impedance is 40 k\(\Omega \), balanced or unbalanced, with a maximum input level exceeding +22 dBu. The outputs are impedance-balanced/unbalanced with RF filtering, offering a maximum output level greater than +21 dBu into 2 k\(\Omega \) or more.
